Gas Detectors

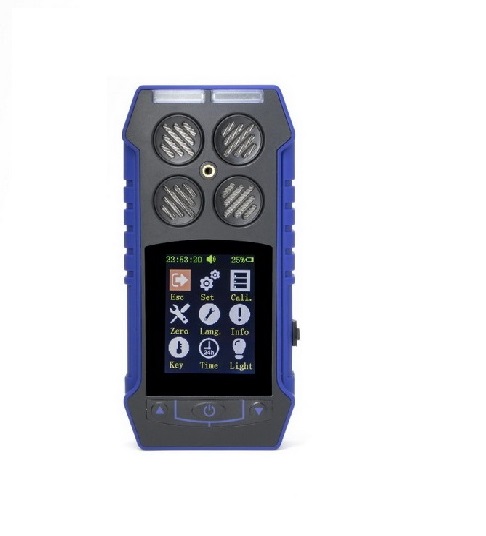

MTPG12 portable multi-gas detector could detect combustible gas, O2 and other two types toxic gases continuously and simultaneously. It is widely used in the area where explosion-proof is required or toxic gas leaks, like underground channels or mining industry, so as to protect the workers' life and avoid damage on the relevant equipments.

Technical data:
Principle: Electrochemical and Catalytic sensor.Normal gases:EX, O2, H2S, CO. Other gases needed, please contact supplier
Range: EX: (0~100)%LEL;O2: (0~30.0)%vol;H2S: (0~100)ppm ;CO: (0~1000) ppm
Resolution: EX: 1%LEL, O2: 0.1%vol ,H2S:1ppm, CO: 1ppm
Accuracy: ≤±2%FS
Sampling method: Diffusion type(Sampling pump optional)
Unit: ppm,mg/m3,%VOL,%LEL
Response Time(T90): < 30S
Display: LCD displays real-time and system status
Color curve: Colorful LCD gas curve display
Alarm method: Audio, Visual LED,Vibratory and LCD Indicators
Working environment: -20ºC~50ºC
Power Supply: 3.7V,1800mA Rechargeable lithium battery
Gas Sensor Life: 2 years
Data record: 500pcs data storage
Data upload: USB interface data upload with computer software
Password protection: Password protection and password modification
Explosion-proof grade: Exib IIB T3 Gb
Humidity: 0-95%RH (no dew)
Shell material: ABS+PC

FEATURES:
Advanced MCU for Low-Power Consumption
LCD display
Self-Test Function
Adjustable alarms
Two Instant Alarm Points
Audio, Visual LED and Vibratory Indicators
Password Protection
Strong, Durable Rubber Casing Provides
Anti-Slip Handleability
Available for CO, H2S, O2,Combustible gas
H2, NH3, SO2, CL2 and formaldehyde etc.
Rechargeable
Comply with ATEX

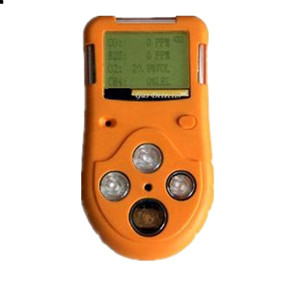

SPECIFICATIONS:
Range:
CO: 0-1000 ppm H2S:0-100 ppm
O2: 0-30%vol CH4: 0-100% LEL
Alarm Point:
O2: 19.5%vol and 23.5%vol
CO: 35 and 200 ppm
H2S: 10 and 15 ppm
CH4: 20 and 50% LEL
Method of Detection: Diffusion
Sensor:
CO, H2S and O2-Electrochemical
Combustible Gases-Catalytic
Display: LCD
Temperature: -20ºC~50ºC
Humidity: 5 to 95% RH, non-condensing
Power: 3.7VDC rechargeable lithium battery
Operating time: Approx.8 hours for LEL unit
Approximately 300 hours for CO, H2S and O2 units,
Continuous, non-alarm conditions
Charge Time: Approximately 4-6 hours
Dimensions: 100mm*58mm*30mm
Sound: 85 dB at 1m
Weight: 130g
Ingress Protection: IP65

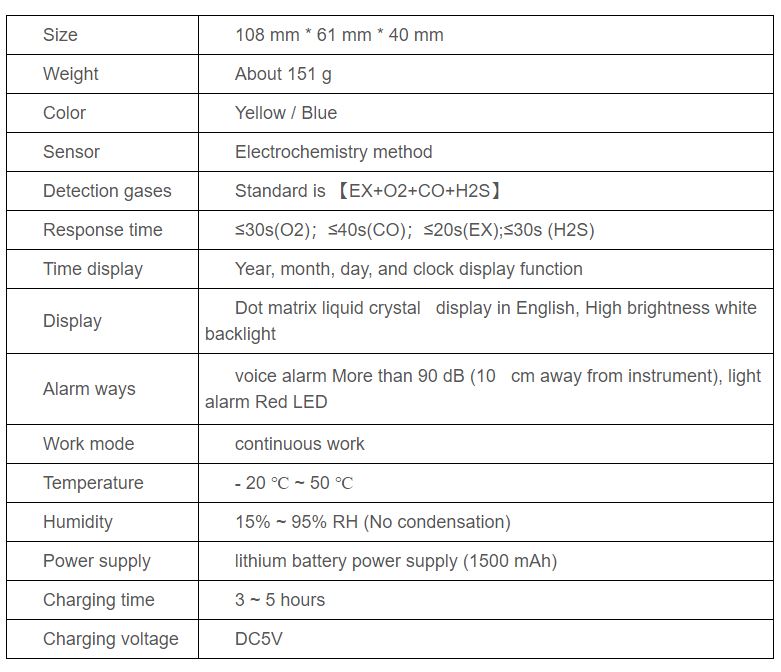

Sensor types: electrochemistry method (gas catalytic combustion type, special separately)
Destination gas: oxygen (O2), gas (EX), poisonous and harmful gases (CO, H2S, NH3, CL2, etc.)
Response time: ≤30s(O2);≤40s(CO);≤20s(EX);
Time display: the machine is year, month, day, and the clock display function
Display : dot matrix liquid crystal display in Chinese, high brightness white backlight
Alarm: voice alarm More than 90 dbvoice alarm (10 cmaway from instrument) light alarmRed LED
Work mode: continuous work (charged under the condition of gas can work 20 hours or so, other gas 7 days or so, the above is for reference only the standby time depending on the number of alarm)
Temperature range: - 20 ºC to 50 ºC
Humidity: 15% ~ 95% RH (No condensation)
Power supply: the lithium battery power supply (1500 mah)
Charging time: 3 ~ 5 hours
Charging voltage: DC5V (dc)

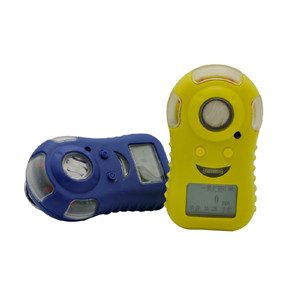

Sensor Type: Electrochemical
Response time:≤40s
Alarm: Audible alarm≥90dB(10cm)
Red LED light alarm
Vibration alarm
Battery Type: CR2 CR15H270 lithium batteries
Temperature Range:-20ºC ~50ºC
Humidity:0~95%(RH)Non-condensing

1. Features:
Super Wide OLED display
Two alarming level Adjustable
High concentration protection for combustible gas
Self test for the combustible gas sensor
Low Voltage indication
Self-check to avoide testing accuracy
Visual and audible alarm with vibration
Self-test when the detector is on with sel-check and self-maintenance
Password management to avoid wrong operation

2. Technical Data:
Detecting range: See appendix 1
Detecting gas: Combustible Gas or Toxic Gas or O2 etc.
Accuracy: ≤±5% F.S
Response time: T < 30s
Indication method: OLED idicates the time and status
Alarming, malfunction and low voltage with OLED, sound, vibration
Operating Conditions: Combustible gas -40ºC~70ºC;     Toxic gas -20ºC~50ºC;
Humidity < 95%RH no condensation
Operating voltage:DC3.6V Li battery;Charging time: 4h~6h
Working time: ≮ 8h continuously for combustible gas;
≮3080h continuously for toxic gas
